Deploy application with Binary Authorization & Cloud Build & Cloud Deploy on CloudRUN and GKE

See GitHub folder for the scripts

Deploy application with Binary Authorization & Cloud Build & Cloud Deploy on CloudRUN and GKE on GIT

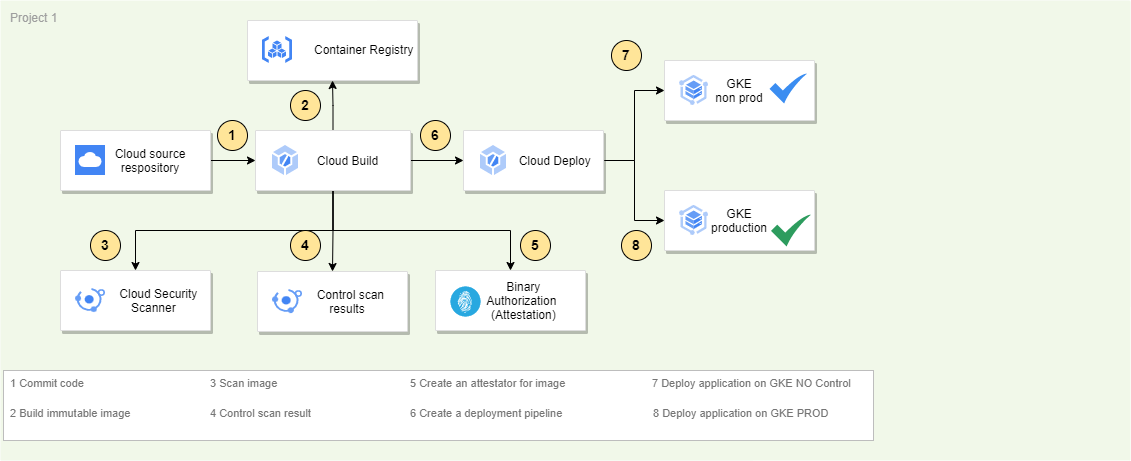

Purpose :

Scan docker image to control CVE vuln
Sign docker images
Control deployment on GKE
Deploy signed docker image on cloud run

With binaryauthorization policy, permission can differ per GKE cluster

Terminology

Binary Authorization is a deploy time security service provided by Google that ensures that only trusted containers are deployed in our GKE cluster. It uses a policy driven model that allows us to configure security policies. Behind the scenes, this service talks to the Container Analysis service.
Container Analysis is an API that is used to store trusted metadata about our software artifacts and is used during the Binary Authorization process
Attestor is a person or process that attests to the authenticity of the image
Note is a piece of metadata in Container Analysis storage that is associated with an Attestor
Attestation is a statement from the Attestor that an image is ready to be deployed. In our case we will use an attestation that refers to the signing of our image

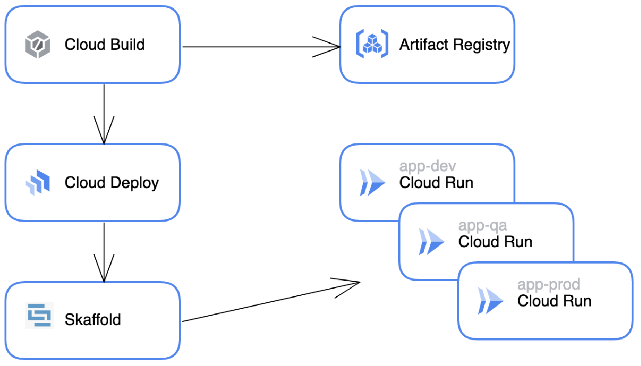

What is Cloud Build? With Cloud Build you can build software quickly across all programming languages.
What is Cloud Deploy? Cloud Deploy is a fully managed continuous delivery service. With Cloud Deploy you can create deployment pipelines for GKE, Anthos and Cloud Run.
What is Cloud Run? With Cloud Run you can deploy scalable containerized applications written in any language (including Go, Python, Java, Node.js, .NET, and Ruby) on a fully managed platform.
What is Skaffold? Skaffold is a command-line tool that enables continuous development for Kubernetes-native applications. Cloud Deploy uses Skaffold for render and deploy operations.

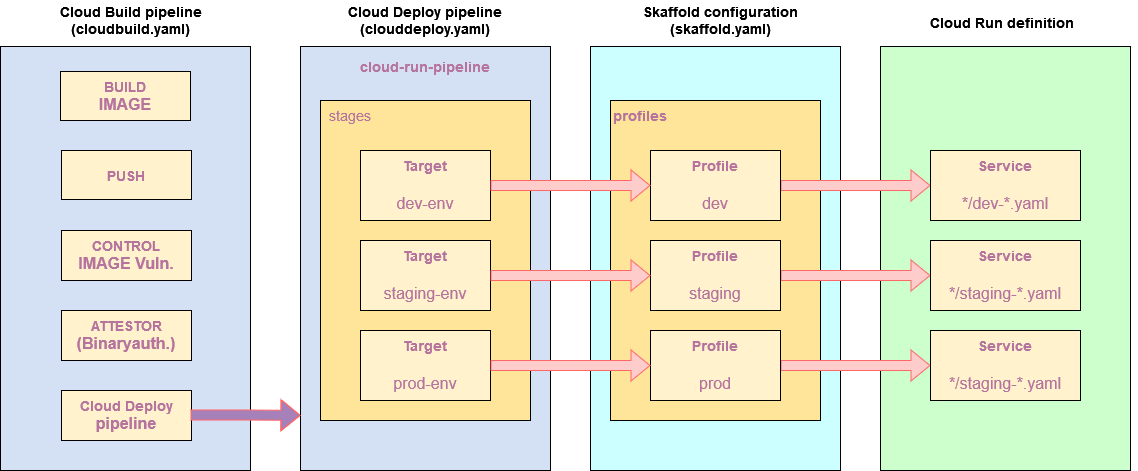

Configuration files

Deploy pipeline file : deploy/clouddeploy.yaml Skaffold configuration file : config/skaffold.yaml

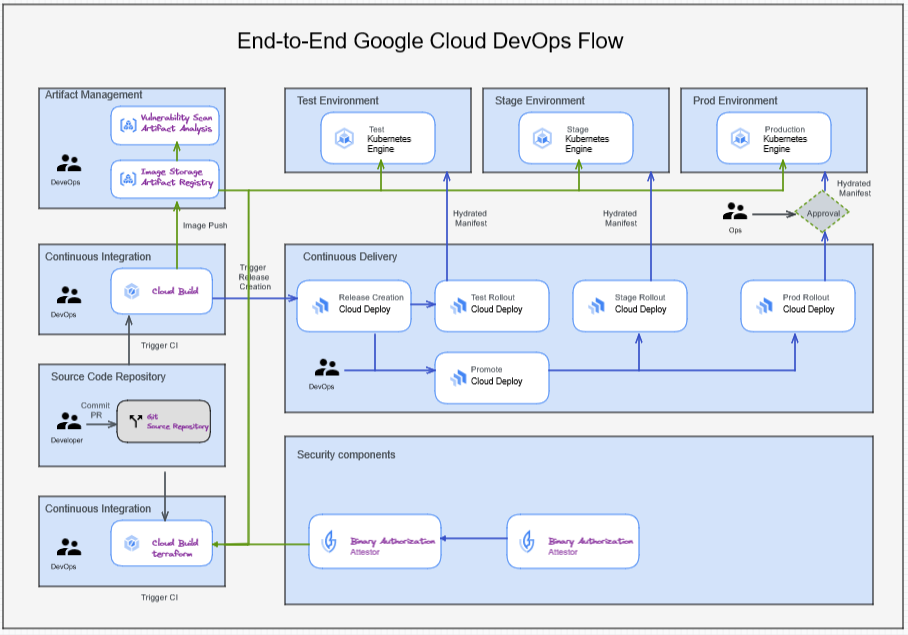

Pipeline description

======

On the guideline you’ll retrieve :

Chapter	Description
`1`	Solution 1 : Manual deployment
`2`	Solution 2 : Infrastructure deployment TERRAFORM & CloudBuild
`3`	Step 3 : Setup the Cloud Build pipeline for Cloud Run application
`4`	Step 4 : Setup the Cloud Build pipeline for GKE application
`5`	Step 5 : Setup the Cloud Build pipeline for CloudRUN application

======

:hammer_and_wrench: Solution 1 : Manual deployment

Requirements

[*]-Authenticate on GCP

gcloud auth application-default login
gcloud config set project <PROJECT_NAME>

[*]-Enable GCP services

gcloud services enable \
  artifactregistry.googleapis.com \
  cloudbuild.googleapis.com \
  clouddeploy.googleapis.com \
  containeranalysis.googleapis.com \
  containerregistry.googleapis.com \
  ondemandscanning.googleapis.com

//enable GKE to create and manage your cluster
gcloud services enable container.googleapis.com
//enable BinAuthz to manage a policy on the cluster
gcloud services enable binaryauthorization.googleapis.com
//enable KMS to manage cryptographic signing keys
gcloud services enable cloudkms.googleapis.com
//enable cloudrun with binaryauthorization control
gcloud run services update cloudrun.googleapis.com --binary-authorization=default

Set the Cloud project where you deploy and manage all resources used in this tutorial:

export PROJECT_ID="${DEVSHELL_PROJECT_ID}"

Set the region in which you deploy these resources:

export REGION="europe-west1
export ZONE="europe-west1-c"

Set the Cloud Build project number:

export PROJECT_NUMBER="$(gcloud projects describe "${PROJECT_ID}" \
  --format='value(projectNumber)')"

Set the Cloud Build service account email:

export CLOUD_BUILD_SA_EMAIL="${PROJECT_NUMBER}@cloudbuild.gserviceaccount.com"

Set GCP permission for cloudbuild account

## Add Binary Authorization Attestor Viewer role to Cloud Build Service Account
gcloud projects add-iam-policy-binding $PROJECT \
  --member serviceAccount:${PROJECT_NUMBER}@cloudbuild.gserviceaccount.com \
  --role roles/binaryauthorization.attestorsViewer

## Add Cloud KMS CryptoKey Decrypter role to Cloud Build Service Account (PGP-based Signing)
gcloud projects add-iam-policy-binding $PROJECT \
  --member serviceAccount:${PROJECT_NUMBER}@cloudbuild.gserviceaccount.com \
  --role roles/cloudkms.cryptoKeyDecrypter

## Add Cloud KMS CryptoKey Signer/Verifier role to Cloud Build Service Account (KMS-based Signing)
gcloud projects add-iam-policy-binding $PROJECT \
  --member serviceAccount:${PROJECT_NUMBER}@cloudbuild.gserviceaccount.com \
  --role roles/cloudkms.signerVerifier

## Add Container Analysis Notes Attacher role to Cloud Build Service Account
gcloud projects add-iam-policy-binding $PROJECT \
  --member serviceAccount:${PROJECT_NUMBER}@cloudbuild.gserviceaccount.com \
  --role roles/containeranalysis.notes.attacher

## Add Container Analysis Notes Viewer role to Cloud Build Service Account
gcloud projects add-iam-policy-binding $PROJECT \
  --member serviceAccount:${PROJECT_NUMBER}@cloudbuild.gserviceaccount.com \
  --role roles/containeranalysis.notes.viewer

Create GKE cluster

gcloud container clusters create $PROJECT_ID-gke-cluster \
    --region $REGION \
    --node-locations $ZONE \
    --release-channel regular

# Enforce security for GKE and cloud run service
gcloud container clusters update $PROJECT_ID-gke-cluster --region $REGION --binauthz-evaluation-mode=PROJECT_SINGLETON_POLICY_ENFORCE

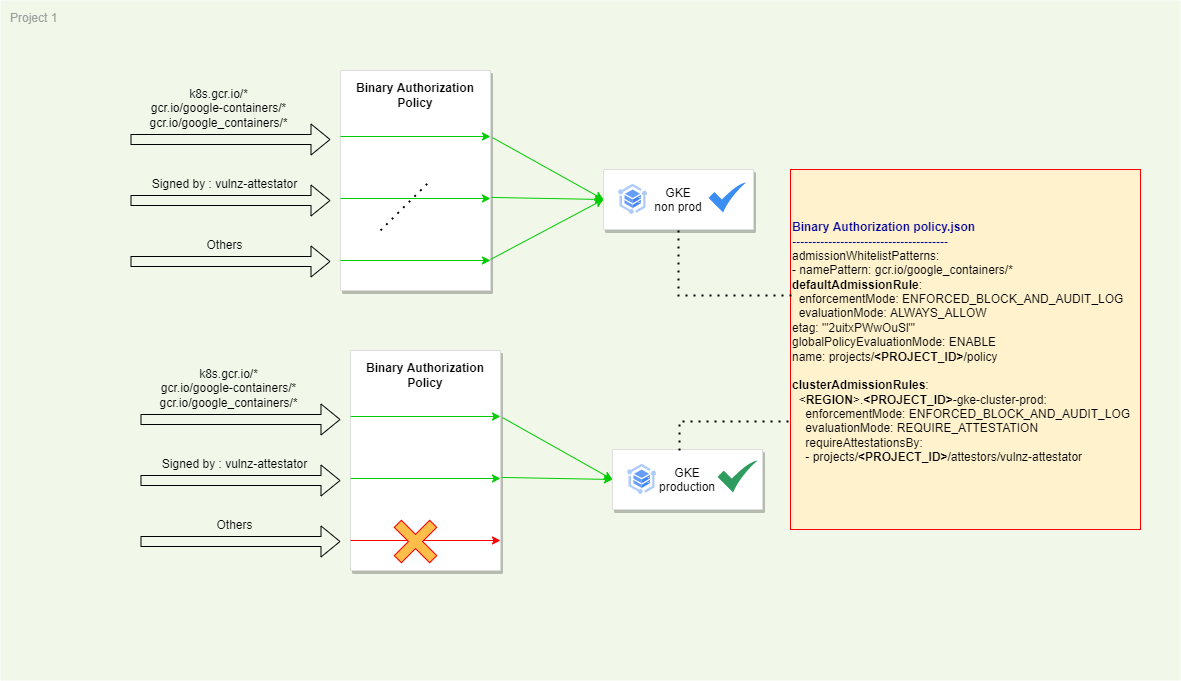

Setting the Binary Authorization policy

[*]- Create a policy file

cat > ./policy.yaml <<
admissionWhitelistPatterns:
- namePattern: docker.io/istio/*
defaultAdmissionRule:
  enforcementMode: ENFORCED_BLOCK_AND_AUDIT_LOG
  requireAttestationsBy:
    - projects/_PROJECT_ID_/attestors/built-by-cloud-build
  evaluationMode: ALWAYS_DENY
globalPolicyEvaluationMode: ENABLE
clusterAdmissionRules:
  # Staging cluster
  europe-west1.<project_ID>-cluster-staging:
    evaluationMode: REQUIRE_ATTESTATION
    enforcementMode: ENFORCED_BLOCK_AND_AUDIT_LOG
    requireAttestationsBy:
    - projects/_PROJECT_ID_/attestors/vulnz-attestator

  # Production cluster
  europe-west1.<project_ID>-cluster-prod:
    evaluationMode: REQUIRE_ATTESTATION
    enforcementMode: ENFORCED_BLOCK_AND_AUDIT_LOG
    requireAttestationsBy:
    - projects/_PROJECT_ID_/attestors/vulnz-attestator
EOM

[*]- Import binary policy

sed -i "s#PROJECT_ID#$PROJECT#g" ./policy.yaml
gcloud container binauthz policy import policy.yaml

[*]- Creating signing key Signing key

gcloud kms keyrings create "binauthz" \
  --project "${PROJECT_ID}" \
  --location global

Create an asymmetric Cloud KMS key named vulnz-signer which will be used to sign and verify vulnerability scan attestations

gcloud kms keys create "vulnz-signer" \
  --project "${PROJECT_ID}" \
  --location "${REGION}" \
  --keyring "binauthz" \
  --purpose "asymmetric-signing" \
  --default-algorithm "rsa-sign-pkcs1-4096-sha512"

[*]- Configuring attestations Create a Container Analysis note named ‘vulnz-note’

curl "https://containeranalysis.googleapis.com/v1/projects/${PROJECT_ID}/notes/?noteId=vulnz-note" \
  --request "POST" \
  --header "Content-Type: application/json" \
  --header "Authorization: Bearer $(gcloud auth print-access-token)" \
  --header "X-Goog-User-Project: ${PROJECT_ID}" \
  --data-binary @- << EOF
    {
      "name": "projects/${PROJECT_ID}/notes/vulnz-note",
      "attestation": {
        "hint": {
          "human_readable_name": "Vulnerability scan note"
        }
      }
    }
EOF

Create the vulnerability scan attestor

gcloud container binauthz attestors create "vulnz-attestator" \
  --project "${PROJECT_ID}" \
  --attestation-authority-note-project "${PROJECT_ID}" \
  --attestation-authority-note "vulnz-note" \
  --description "Vulnerability scan attestor"

Verify attestor creation

gcloud container binauthz attestors list

Add the KMS public key for the attestor’s signing key

gcloud beta container binauthz attestors public-keys add \
  --project "${PROJECT_ID}" \
  --attestor "vulnz-attestator" \
  --keyversion "1" \
  --keyversion-key "vulnz-signer" \
  --keyversion-keyring "binauthz" \
  --keyversion-location "${REGION}" \
  --keyversion-project "${PROJECT_ID}"

Verify attestor creation with KMS key

gcloud container binauthz attestors list

Build attestator image

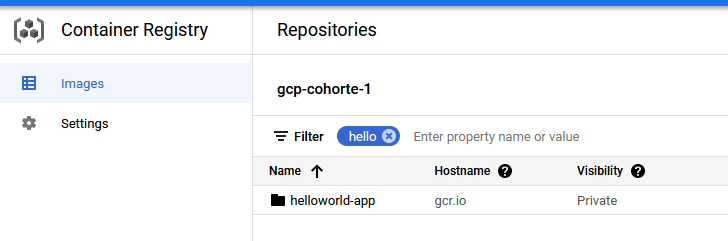

Create an image from Google source repository

 git clone https://github.com/GoogleCloudPlatform/cloud-builders-community.git
 cd binauthz-attestation
 gcloud builds submit . --config cloudbuild.yaml

MANUAL TEST : Create a Signed attestation

Retrieve Digest image

Get digest for image like => sha256:xxxxx

export CONTAINER_PATH="gcr.io/${PROJECT_ID}/helloworld-app:${TAG}
export TAG=latest

export DIGEST=$(gcloud container images describe ${CONTAINER_PATH}:${TAG} \
    --format='get(image_summary.digest)')

Sign image with attestor

The attestation sign the image

export ATTESTOR_ID=vulnz-attestator

gcloud beta container binauthz attestations sign-and-create  \
    --artifact-url="${CONTAINER_PATH}@${DIGEST}" \
    --attestor="${ATTESTOR_ID}" \
    --attestor-project="${PROJECT_ID}" \
    --keyversion-project="${PROJECT_ID}" \
    --keyversion-location="${KEY_LOCATION}" \
    --keyversion-keyring="${KEYRING}" \
    --keyversion-key="${KEY_NAME}" \
    --keyversion="${KEY_VERSION}"

Retrieve attestation

gcloud container binauthz attestations list \
   --attestor=$ATTESTOR_ID --attestor-project=${PROJECT_ID}

Deploy image on GKE cluster

kubectl create deployment helloworld-app-signed --image="${CONTAINER_PATH}@${DIGEST}"

# Get pods
kubectl create deployment helloworld-app-signed --image="${CONTAINER_PATH}@${DIGEST}"

Results

helloworld-app-signed-7688dc55f9-ezz6m   1/1       Running   0          50s

:hammer_and_wrench: Solution 2 : Infrastructure deployment TERRAFORM & CloudBuild

The objective of the IAC, deploy and configure infrastructure with : . IAM permission for cloudbuild SA . Configure BinaryAuthorization . Deploy GKE cluster

prerequisites

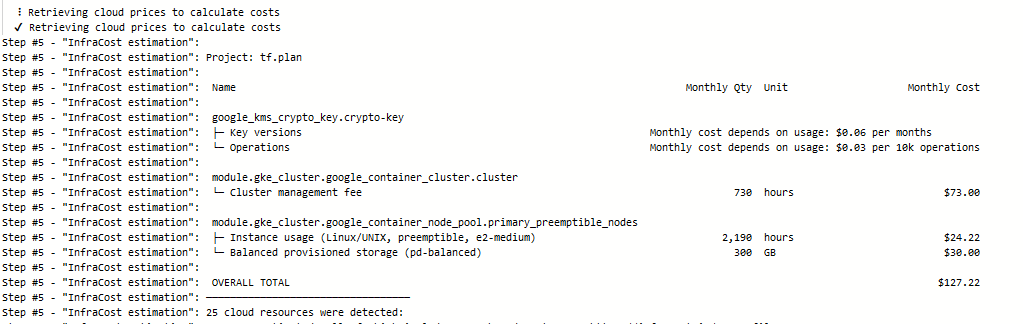

Generate InfraCost key

infracost auth login

================================

Infrastructure deployment

================================

Add Cloudbuild trigger

You can set up automated deployments of a GitHub repository using the following command, which will cause a build, publish, and deploy to be triggered for every push to any branch. This command allows setting up a build trigger without needing an explicit cloudbuild.yaml file in your repository.

Go to directory containing this doc.

git clone https://github.com/xxxxxx.git

PROJECT=my-project
OWNER=user
REPO=repo
BRANCH_REGEX='^main$'
TF_BUCKET=project-bucket-tf
INFRACOST_KEY=xxxxxxxx

# Copy trigger.yaml and replace values
cp trigger.yaml my-trigger-init.yaml
sed -i "s#OWNER#$OWNER#g" my-trigger-init.yaml
sed -i "s#REPO#$REPO#g" my-trigger-init.yaml
sed -i "s#BRANCH_REGEX#$BRANCH_REGEX#g" my-trigger-init.yaml
sed -i "s#PROJECT_ID#$PROJECT#g" my-trigger-init.yaml

# Configure new cloudbuild-infra.yaml
cp cloudbuild-init.yaml.tpl cloudbuild-infra.yaml
sed -i "s#OWNER#$OWNER#g" cloudbuild-infra.yaml
sed -i "s#REPO#$REPO#g" cloudbuild-infra.yaml
sed -i "s#BRANCH_REGEX#$BRANCH_REGEX#g" cloudbuild-infra.yaml
sed -i "s#PROJECT_ID#$PROJECT#g" cloudbuild-infra.yaml
sed -i "s#TF_BUCKET#$TF_BUCKET#g" cloudbuild-infra.yaml
sed -i "s#INFRACOST_KEY#$INFRACOST_KEY#g" cloudbuild-infra.yaml

gcloud alpha builds triggers create github --trigger-config=my-trigger-init.yaml --project=$PROJECT

[*]- Test cloudbuild-infra.yaml file Sample file : cloudbuild-init.yaml

cloud-build-local --config cloudbuild-infra.yaml --dryrun=true  .

=> Control trigger is deployed

Manual infrastructure deployment

gcloud builds submit . --config cloudbuild-init.yaml

After commit the code cloudbuild will generate infrastructure with an estimation cost for the infrastructure

================================

:newspaper: Step 3 : Setup the Cloud Build pipeline for Cloud Run application

[*]- Folder : build/01-cloudrun

[*]- Create repository

gcloud source repos create hellworld-app --project "${PROJECT_ID}"

[*]- copy cloudbuild.yaml file Adapt content variable for your need

[*]- Test cloudbuild.yaml file

cloud-build-local --config cloudbuild.yaml --dryrun=true  .

[*]- Create Cloud build Trigger with Substitution Variables

_ATTESTOR_NAME with the name of the value “vulnz-attestator”
_COMPUTE_REGION for deployment with the value us-central1 (or the region you chose in the beginning) : “global”
_KMS_KEY with the value “vulnz-signer”
_KMS_KEY_VERSION with the value “1”.
_KMS_KEYRING with the value “binauthz”
_KMS_LOCATION with the value eu-central1 (or the region you chose in the beginning) : “global”
_PROD_CLUSTER with the value “prod-cluster” for GKE deployment

Copy trigger.yaml and replace values

cp trigger.yaml my-trigger-init.yaml

PROJECT=my-project
OWNER=user
REPO=repo
BRANCH_REGEX='^main$'
ATTESTOR_NAME=vulnz-attestator
COMPUTE_REGION=global
KMS_KEY=vulnz-signer
KMS_KEY_VERSION=1
KMS_KEYRING=binauthz
KMS_LOCATION=global
PROD_CLUSTER=prod-cluster


cp trigger.yaml my-trigger.yaml
sed -i "s#OWNER_#$OWNER#g" my-trigger.yaml
sed -i "s#REPO#$REPO#g" my-trigger.yaml
sed -i "s#BRANCH_REGEX#$BRANCH_REGEX#g" my-trigger.yaml
sed -i "s#PROJECT_ID#$PROJECT#g" my-trigger.yaml
sed -i "s#ATTESTOR__NAME#$ATTESTOR_NAME#g" my-trigger.yaml
sed -i "s#LOCATION#$COMPUTE_REGION#g" my-trigger.yaml
sed -i "s#KMS__KEY#$KMS_KEY#g" my-trigger.yaml
sed -i "s#KMS__KEY__VERSION#$KMS_KEY_VERSION#g" my-trigger.yaml
sed -i "s#KMS__KEYRING#$KMS_KEYRING#g" my-trigger.yaml
sed -i "s#KMS__LOCATION#$KMS_LOCATION#g" my-trigger.yaml
sed -i "s#PROD_CLUSTER#$PROD_CLUSTER#g" my-trigger.yaml


gcloud alpha builds triggers create github --trigger-config=my-trigger-init.yaml --project=$PROJECT

Once cloudbuild is triggered, a new image was generate

Test deployment

[*]- Verification to control image was signed Go on the container registry : https://console.cloud.google.com/gcr/images/PROJECT_ID?authuser=1&project= Retrieve the Digest value from the image ![](./img/container-2.png)

gcloud container binauthz attestations list    --project="$(PROJECT_ID)"    --attestor="projects/$(PROJECT_ID)/attestors/vulnz-attestator"    --artifact-url="gcr.io/$(PROJECT_ID)/<IMAGE NAME>@sha256:<DIGEST>

Request response

attestation:
  serializedPayload: ewogICJjcml0aWNhbCI6IHsKICAgICJpZGVudGl0eSI6IHsKICAgICAgImRvY2tlci1yZWZlcmVuY2UiOiAiZ2NyLmlvL2djcC1jb2hvcnRlLTEvdGVzdGJpbmF1dGgiCiAgICB9LAogICAgImltYWdlIjogewogICAgICAiZG9ja2VyLW1hbmlmZXN0LWRpZ2VzdCI6ICJzaGEyNTY6MTQxZGY2M2E4YzA4ZjRkZTg0MjQwOGZhNDllZWQyNDA3Zjk5NDJmNWVmOWUyMmJkZDRlZmFhNTFiODk5MGQ1YSIKICAgIH0sCiAgICAidHlwZSI6ICJHb29nbGUgY2xvdWQgYmluYXV0aHogY29udGFpbmVyIHNpZ25hdHVyZSIKICB9Cn0K
  signatures:
  - publicKeyId: //cloudkms.googleapis.com/v1/projects/_PROJECT_ID_/locations/global/keyRings/binauthz/cryptoKeys/vulnz-signer/cryptoKeyVersions/1
    signature: eEoYcFvHvj7EWVZ2hhHRScefPS7VYEyX73Vc-dwaer_ZqOAeLCBvOjdQdnpmPmTtkZHN1Vj9EaCqYKEVJ3Opum5ZD_AiHbDOMRNEY7EtH_N883MTabZuLoW9VrlSoW6Isq91rUSdkLphp8P8Ds8QUnrVuf1X_o-2QJ-UjwNBYz6AmPxrdTA76iphC4HhEVayB52AOo9uYYTZZqRnmnBrtGUt_JYf537Pit-_D1Q1z97T2PN_MprnZZg6YohY-TFNputYgAsj8pxXmkT6c69tnZeSVPI2NIkmGlLd24E9qAJnJGaGZEcJhIWs8Y4NwriQcjXa6orNM4w9Twl_mw4cJcC1-YTVQ1slmw9kgawbOtR5I-nGXH1IJIagt3azGuyeJBFw0atahUKd0NawpVl9VVxwHigXEUva7OMgMx_ZlOzqtwoXi2j2RXB7QAh3rI-FmxnNa_dkhPbfYgvSplbqtOFx5qyBICGWSdevvTNlGiCZNbGi26Fe3EZ_NB5nRDBugUia9F08r1xAXJZD-ncnOPYOBkdvgTOAMupfPFSeFTkG3b8qA4Y9PHCgCqkvLn1B9U-jJizo8NmmTCGPymNGje5z2CGfpN5NgNBeoskyVsV5Yf54HaNm8TrkuMjfqwXqo7aQhF_amdsToVm8aCghVxxR8l5wYrtzfJwMXwhmTMk=
createTime: '2022-09-29T15:38:34.159772Z'
kind: ATTESTATION
name: projects/_PROJECT_ID_/occurrences/15b44946-7b2f-4550-8ce1-e09f6fbac78f
noteName: projects/_PROJECT_ID_/notes/vulnz-note
resourceUri: https://gcr.io/_PROJECT_ID_/helloworld@sha256:141df63aEc08f4de842408fa49eed2407f9942f5ef9e22bdd4efaa51bE990d5a
updateTime: '2022-09-29T15:38:34.159772Z'

================================

:newspaper: Step 4 : Setup the Cloud Build pipeline for GKE application

[*]- Folder : build/02-gke

[*]- Create repository

gcloud source repos create hellworld-app --project "${PROJECT_ID}"

[*]- Create trigger for cloudbuild deployment 1 - Create first your cloudbuild.yaml file

PROJECT=my-project
OWNER=user
REPO=repo
BRANCH_REGEX='^main$'
GKE_CLUSTER_NAME=my_gke_cluster
IMAGE=helloworld-app
REGION=europe-west-1

// Copy cloudbuild-sample.yaml and replace values
cp cloudbuild-sample.yaml my-cloudbuild.yaml
sed -i "s#OWNER#$OWNER#g" my-cloudbuild.yaml
sed -i "s#REPO#$REPO#g" my-cloudbuild.yaml
sed -i "s#BRANCH_REGEX#$BRANCH_REGEX#g" my-cloudbuild.yaml
sed -i "s#PROJECT_ID#$PROJECT#g" my-cloudbuild.yaml
sed -i "s#BUILD_IMAGE#$IMAGE#g" my-cloudbuild.yaml
sed -i "s#LOCATION#$REGION#g" my-cloudbuild.yaml
sed -i "s#GKE_CLUSTER_NAME#$GKE_CLUSTER_NAME#g" my-cloudbuild.yaml

gcloud alpha builds trigger create github --trigger-config=my-cloudbuild.yaml --project=$PROJECT

[*]- Test my-cloudbuild.yaml file Sample file : cloudbuild.yaml

cloud-build-local --config my-cloudbuild.yaml --dryrun=true  .

2 - Create cloudbuild trigger

PROJECT=my-project
OWNER=user
REPO=repo
BRANCH_REGEX='^main$'
ATTESTOR_NAME=vulnz-attestator
COMPUTE_REGION=global
KMS_KEY=vulnz-signer
KMS_KEY_VERSION=1
KMS_KEYRING=binauthz
KMS_LOCATION=global
PROD_CLUSTER=prod-cluster


cp trigger.yaml my-trigger.yaml
sed -i "s#OWNER_#$OWNER#g" my-trigger.yaml
sed -i "s#REPO#$REPO#g" my-trigger.yaml
sed -i "s#BRANCH_REGEX#$BRANCH_REGEX#g" my-trigger.yaml
sed -i "s#PROJECT_ID#$PROJECT#g" my-trigger.yaml
sed -i "s#ATTESTOR__NAME#$ATTESTOR_NAME#g" my-trigger.yaml
sed -i "s#LOCATION#$COMPUTE_REGION#g" my-trigger.yaml
sed -i "s#KMS__KEY#$KMS_KEY#g" my-trigger.yaml
sed -i "s#KMS__KEY__VERSION#$KMS_KEY_VERSION#g" my-trigger.yaml
sed -i "s#KMS__KEYRING#$KMS_KEYRING#g" my-trigger.yaml
sed -i "s#KMS__LOCATION#$KMS_LOCATION#g" my-trigger.yaml
sed -i "s#PROD_CLUSTER#$PROD_CLUSTER#g" my-trigger.yaml

[*]- Create Cloud build Trigger with Substitution Variables

gcloud alpha builds trigger create github --trigger-config=my-trigger.yaml --project=$PROJECT

=> Control trigger is deployed

Infracost

=> Control cloud deploy deployment steps

:euro: Kubecost

Step 1: Install Kubecost

helm install kubecost/cost-analyzer --debug --wait --namespace kubecost --name kubecost \
    --set kubecostToken="<INSERT_YOUR_TOKEN>" \
    --set prometheus.nodeExporter.enabled=false \
    --set prometheus.serviceAccounts.nodeExporter.create=false

[_] Create proxy to access kubecost interface

kubectl port-forward --namespace kubecost deployment/kubecost-cost-analyzer 9090

Test to deploy attest image

kubectl run nginx --image=nginx -n default

Results

Error from server (VIOLATES_POLICY): admission webhook "imagepolicywebhook.image-policy.k8s.io" denied the request: Image nginx denied by Binary Authorization default admission rule. Denied by always_deny admission rule

================================

:newspaper: Step 5 : Setup the Cloud Build pipeline for CloudRUN application

Setup CloudRUN with GCP services :

Cloud Deploy
BinaryAuthorization
Artifactory
CloudBuild

[*]- Create trigger for cloudbuild deployment 1 - Create first your cloudbuild.yaml file

cd build/04-cloudrun-with-clouddeploy/
PROJECT=my-project
OWNER=user
REPO=repo
BRANCH_REGEX='^main$'
GKE_CLUSTER_NAME=my_gke_cluster
IMAGE=helloworld-app
REGION=europe-west-1

// Copy cloudbuild-sample.yaml and replace values
cp cloudbuild-sample.yaml my-cloudbuild.yaml
sed -i "s#OWNER#$OWNER#g" my-cloudbuild.yaml
sed -i "s#REPO#$REPO#g" my-cloudbuild.yaml
sed -i "s#BRANCH_REGEX#$BRANCH_REGEX#g" my-cloudbuild.yaml
sed -i "s#PROJECT_ID#$PROJECT#g" my-cloudbuild.yaml
sed -i "s#BUILD_IMAGE#$IMAGE#g" my-cloudbuild.yaml
sed -i "s#LOCATION#$REGION#g" my-cloudbuild.yaml
sed -i "s#GKE_CLUSTER_NAME#$GKE_CLUSTER_NAME#g" my-cloudbuild.yaml

gcloud alpha builds trigger create github --trigger-config=my-cloudbuild.yaml --project=$PROJECT

[*]- Test my-cloudbuild.yaml file Sample file : cloudbuild.yaml

cloud-build-local --config my-cloudbuild.yaml --dryrun=true  .

2 - Create cloudbuild trigger

PROJECT=my-project
OWNER=user
REPO=repo
BRANCH_REGEX='^main$'
ATTESTOR_NAME=vulnz-attestator
COMPUTE_REGION=global
KMS_KEY=vulnz-signer
KMS_KEY_VERSION=1
KMS_KEYRING=binauthz
KMS_LOCATION=global
PROD_CLUSTER=prod-cluster


cp trigger.yaml my-trigger.yaml
sed -i "s#OWNER_#$OWNER#g" my-trigger.yaml
sed -i "s#REPO#$REPO#g" my-trigger.yaml
sed -i "s#BRANCH_REGEX#$BRANCH_REGEX#g" my-trigger.yaml
sed -i "s#PROJECT_ID#$PROJECT#g" my-trigger.yaml
sed -i "s#ATTESTOR__NAME#$ATTESTOR_NAME#g" my-trigger.yaml
sed -i "s#LOCATION#$COMPUTE_REGION#g" my-trigger.yaml
sed -i "s#KMS__KEY#$KMS_KEY#g" my-trigger.yaml
sed -i "s#KMS__KEY__VERSION#$KMS_KEY_VERSION#g" my-trigger.yaml
sed -i "s#KMS__KEYRING#$KMS_KEYRING#g" my-trigger.yaml
sed -i "s#KMS__LOCATION#$KMS_LOCATION#g" my-trigger.yaml
sed -i "s#PROD_CLUSTER#$PROD_CLUSTER#g" my-trigger.yaml


gcloud deploy releases create helloworld-app-9fa592b6496e --region=europe-west1 --delivery-pipeline=cloud-run-pipeline --images=gke-container=gcr.io/<PROJECT_ID>/helloworld-app@sha256:XXXXX --skaffold-file=skaffold.yaml

====================================

:wrench: Build image for binauthz-attestation

https://github.com/GoogleCloudPlatform/cloud-builders-community.git https://github.com/GoogleCloudPlatform/cloud-builders-community/tree/master/binauthz-attestation

Reference

https://cloud.google.com/architecture/binary-auth-with-cloud-build-and-gke#setting_up_the_cloud_build_pipeline

Codelabs

https://codelabs.developers.google.com/codelabs/cloud-binauthz-intro#1

GKE / Binary

https://medium.com/google-cloud/automating-container-security-on-gke-with-binary-authorization-and-circleci-7efa7a6be2a7
