OpenShift 4 User Provisioned Installation on Azure Cloud

This repo provides terraform based implementation which will deploy OpenShift 4.x into an Azure VNET, with two subnets for controlplane and worker nodes. Traffic to the master nodes is handled via a pair of loadbalancers, one for internal traffic and another for external API traffic.

Prerequisites

  1. Configure DNS

  2. Create a Service Principal with proper IAM roles

Minimal TFVARS file substitued from pipeline variables

azure_region = "eastus2"
cluster_name = "ocp43"

base_domain                           = "azure.ncolon.xyz"
azure_base_domain_resource_group_name = "openshift4-common-rg"
cluster_resource_group                = "ocp-cluster-rg"
openshift_pull_secret		      = "./openshift_pull_secret.json"

azure_subscription_id  = "XXXXXXXX-XXXX-XXXX-XXXX-XXXXXXXXXXXX"
azure_tenant_id        = "YYYYYYYY-YYYY-YYYY-YYYY-YYYYYYYYYYYY"
azure_client_id        = "ZZZZZZZZ-ZZZZ-ZZZZ-ZZZZ-ZZZZZZZZZZZZ"
azure_client_secret    = "AAAAAAAA-AAAA-AAAA-AAAA-AAAAAAAAAAAA"

Customizable Variables

Variable Description Default Type
azure_subscription_id Subscription ID for Azure Account - string
azure_tenant_id Tenant ID for Azure Subscription - string
azure_client_id Application Client ID (from Prereq Step #2) - string
azure_client_secret Application Client Secret (from Prereq Step #2) - string
azure_region Azure Region to deploy to - string
cluster_name Cluster Identifier - string
master_count Number of master nodes to deploy 3 string
worker_count Number of worker nodes to deploy 3 string
infra_count Number of infra nodes to deploy 0 string
machine_v4_cidrs IPv4 CIDR for OpenShift VNET [10.0.0.0/16] list
machine_v6_cidrs IPv6 CIDR for OpenShift VNET [] list
base_domain DNS name for your deployment - string
azure_base_domain_resource_group_name Resource group where DNS is hosted. Must be on zame region. - string
azure_bootstrap_vm_type Size of bootstrap VM Standard_D4s_v3 string
azure_master_vm_type Size of master node VMs Standard_D4s_v3 string
azure_infra_vm_type Size of infra node VMs Standard_D4s_v3 string
azure_worker_vm_type Sizs of worker node VMs Standard_D4s_v3 string
openshift_cluster_network_cidr CIDR for Kubernetes pods 10.128.0.0/14 string
openshift_cluster_network_host_prefix Detemines the number of pods a node can host. 23 gives you 510 pods per node. 23 string
openshift_service_network_cidr CIDR for Kubernetes services 172.30.0.0/16 string
openshift_pull_secret Filename that holds your OpenShift pull-secret - string
azure_master_root_volume_size Size of master node root volume 512 string
azure_worker_root_volume_size Size of worker node root volume 128 string
azure_infra_root_volume_size Size of infra node root volume 128 string
azure_master_root_volume_type Storage type for master root volume Premium_LRS string
azure_image_url URL of the CoreOS image. URL string
openshift_version Version of OpenShift to deploy. 4.3.26 strig
bootstrap_completed Control variable to delete bootstrap node after initialization false bool
azure_private If set to true will deploy api and *.apps endpoints as private LoadBalancers - bool
azure_extra_tags Extra Azure tags to be applied to created resources {} map
airgapped Configuration for an AirGapped environment AirGapped map
azure_environment The target Azure cloud environment for the cluster public string
azure_master_availability_zones The availability zones in which to create the masters. The length of this list must match master_count [“1”,”2”,”3”] list
azure_preexisting_network Specifies whether an existing network should be used or a new one created for installation. false bool
azure_network_resource_group_name The name of the network resource group, either existing or to be created null string
azure_virtual_network The name of the virtual network, either existing or to be created null string
azure_control_plane_subnet The name of the subnet for the control plane, either existing or to be created null string
azure_compute_subnet The name of the subnet for worker nodes, either existing or to be created null string
azure_emulate_single_stack_ipv6 This determines whether a dual-stack cluster is configured to emulate single-stack IPv6 false bool
azure_outbound_user_defined_routing This determined whether User defined routing will be used for egress to Internet. When false, Standard LB will be used for egress to the Internet. false bool
use_ipv4 This determines wether your cluster will use IPv4 networking true bool
use_ipv6 This determines wether your cluster will use IPv6 networking false bool

Deploy with Terraform

  1. Clone github repository
    git clone https://github.com/CG-Sogeti/CloudBoost.Cloud.git
cd CloudBoost.Cloud/_ibm/openshiftcontainer

  2. Create your terraform.tfvars file

  3. Deploy with terraform
    $ terraform init
$ terraform plan
$ terraform apply

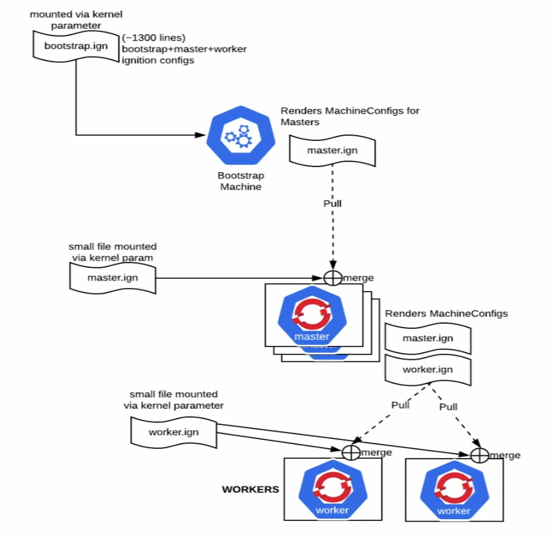

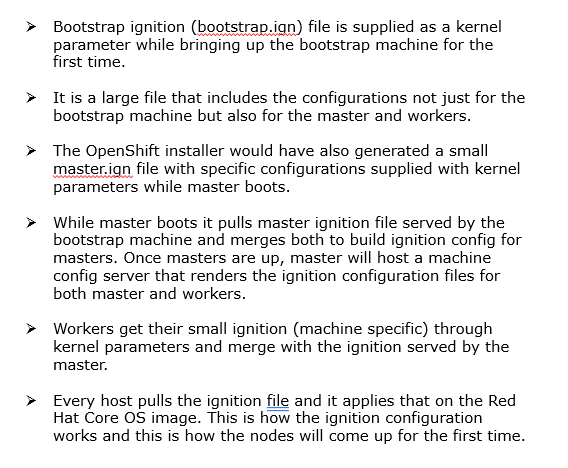

  4. Destroy bootstrap node
    $ TF_VAR_bootstrap_complete=true terraform apply
  5. To access your cluster
     $ export KUBECONFIG=$PWD/installer-files/auth/kubeconfig
 $ oc get nodes
NAME                                STATUS   ROLES          AGE     VERSION
ocp43-6s3ag-infra-eastus21-zgv9p    Ready    infra,worker   2m52s   v1.14.6+c07e432da
ocp43-6s3ag-infra-eastus22-7dr7x    Ready    infra,worker   2m42s   v1.14.6+c07e432da
ocp43-6s3ag-infra-eastus23-7d22g    Ready    infra,worker   2m4s    v1.14.6+c07e432da
ocp43-6s3ag-master-0                Ready    master         9m24s   v1.14.6+c07e432da
ocp43-6s3ag-master-1                Ready    master         10m     v1.14.6+c07e432da
ocp43-6s3ag-master-2                Ready    master         9m44s   v1.14.6+c07e432da
ocp43-6s3ag-worker-eastus21-q62tb   Ready    worker         2m42s   v1.14.6+c07e432da
ocp43-6s3ag-worker-eastus22-tdc2q   Ready    worker         2m53s   v1.14.6+c07e432da
ocp43-6s3ag-worker-eastus23-wmwzz   Ready    worker         2m56s   v1.14.6+c07e432da

Infra and Worker Node Deployment

Deployment of Openshift Worker and Infra nodes is handled by the machine-operator-api cluster operator.

$ oc get machineset -n openshift-machine-api
NAME                          DESIRED   CURRENT   READY   AVAILABLE   AGE
ocp43-f5k8m-infra-eastus21    1         1         1       1           12h
ocp43-f5k8m-infra-eastus22    1         1         1       1           12h
ocp43-f5k8m-infra-eastus23    1         1         1       1           12h
ocp43-f5k8m-worker-eastus21   1         1         1       1           12h
ocp43-f5k8m-worker-eastus22   1         1         1       1           12h
ocp43-f5k8m-worker-eastus23   1         1         1       1           12h

$ oc get machines -n openshift-machine-api
NAME                                STATE     TYPE              REGION    ZONE   AGE
ocp43-f5k8m-infra-eastus21-7f9sv    Running   Standard_D4s_v3   eastus2   1      12h
ocp43-f5k8m-infra-eastus22-tsh7s    Running   Standard_D4s_v3   eastus2   2      12h
ocp43-f5k8m-infra-eastus23-vw5mc    Running   Standard_D4s_v3   eastus2   3      12h
ocp43-f5k8m-worker-eastus21-8sgs5   Running   Standard_D8s_v3   eastus2   1      12h
ocp43-f5k8m-worker-eastus22-zqmc5   Running   Standard_D8s_v3   eastus2   2      12h
ocp43-f5k8m-worker-eastus23-q9g5v   Running   Standard_D8s_v3   eastus2   3      12h

The infra nodes host the router/ingress pods, all the monitoring infrastrucutre, and the image registry.
